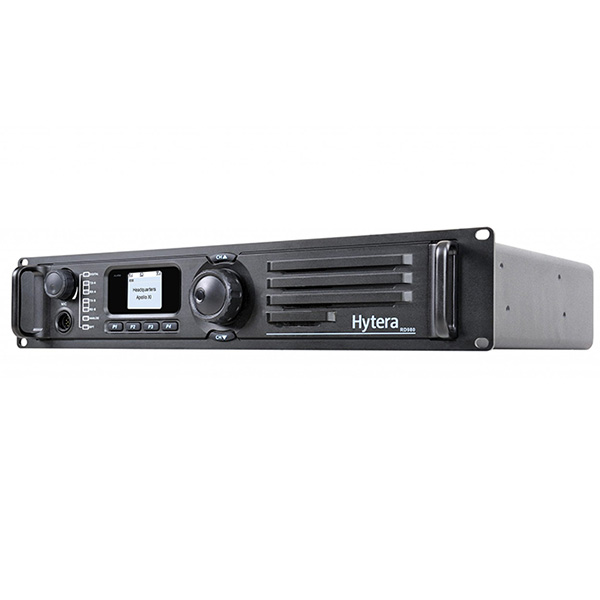

Hytera RD98XS Walkie Talkie Repeater

Hytera RD98XS Repeater is a 50W, DMR and analog dual mode upgradable repeater which can work in analog and DMR conventional modes. It can be upgraded to trunking or simulcast mode by software only. One step upgrade package makes it easy to operate in different modes, analog conventional, MPT-1327, DMR conventional, DMR trunking and DMR simulcast with only one hardware platform.


Description

CONVENTIONAL FEATURES

Repeater Diagnostic And Control (RDAC)
Hytera RD98XS walkie talkie repeater supports Remote (via IP port to connect to internet) and Local diagnostic (via USB) PC applications to monitor, diagnose and control the repeater status, thus increasing the maintenance efficiency. Hytera developed RDAC is able to support multiple master network connection to allow radio administrator to monitor multiple radio network upcoming!

Analog Digital Auto switch
RD98XS supports Analog and Digital channel auto switching, allowing efficient frequency sharing between Analog and Digital users during the digital migration. Analog channel is capabiable with CTCSS/CDCSS, HDC1200.

Analog/Digital Back-to-Back Interconnect
RD98XS supports different operating mode of Analog and Digital to interconnect for voice cross patch, allowing Analog users to communicate to the Digital users and vice versa. This has allowed the smooth migration for Analog users to the digital world!

Dual Slot Digital Audio Streaming
RD98XS supports streaming of both the voice slots via the rear port accessory pins, allowing third party for capability expansion.

IP Multi-site Connection
RD98XS supports network interconnection via the IP port of repeater to form a private radio network, allowing wide area coverage to meet dispersed locations data and voice communications.

Analog/Digital Telephone Interconnect (via DTMF signaling)
RD98XS supports simplex voice communications between radio and telephone users. It allows a radio user to make a telephone call; or a telephone user to make either a Group or Private call to radio users.

Analog Scan
RD98XS supports Analog voice and signaling scan, allowing repeating of different Analog voice users from various groups.

Open Standard
DMR Trunking Lite is based on DMR tier III standard, defined by ETSI in 2005, which is a digital radio standard for professional radio users. With dedicated control channel, DMR Trunking Lite can achieve versatile functions.

Smooth Migration
DMR Trunking Lite transceiver supports smooth migration from analog to digital, from conventional to trunking. Multi-modes provide you different choices for continual investment.

Integrated RF System
Intergrated 2-carrier RF system, significantly reduces the space and cost for divider, combiner and duplexer.

Non-centralilzed Structure Design
Non-centralized structure is only used for less than 5 base stations. It will ensure a cost-effective and flexible networking especially suits for small scale of network.
