Motorola
| 品牌 Brand | Motorola | Motorola | Motorola | Motorola | Motorola | Motorola | Motorola | Motorola | Motorola |
|---|---|---|---|---|---|---|---|---|---|
| 图片 Picture |  |  |  |  |  |  |  |  |  |

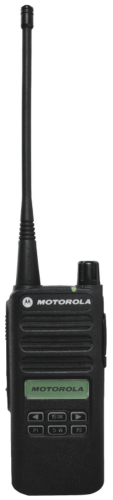

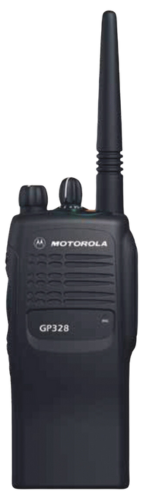

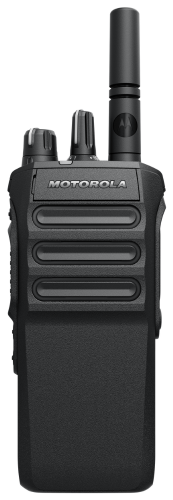

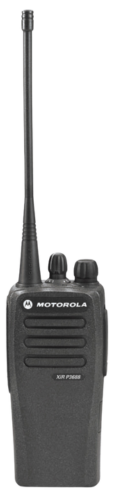

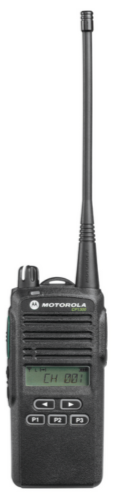

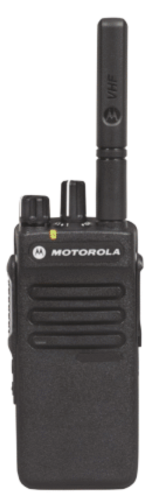

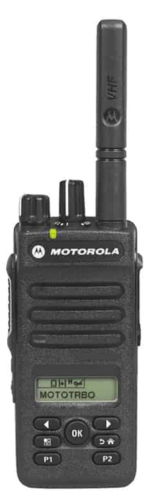

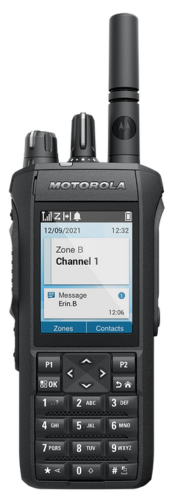

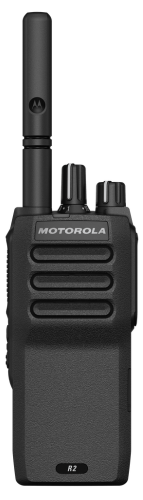

| 产品名称 Type | CP1300 | C2620 | GP328 | XiR P3688 | XiR P6600i | XiR P6620i | R2 | R7 FULL KEYPAD MODEL (FKP) | R7 AND R7A NO KEYPAD MODEL (NKP) |
| Brochure | View Brochure | View Brochure | View Brochure | View Brochure | View Brochure | View Brochure | View Brochure | View Brochure | |
| 一般规格 General Specifications | |||||||||
| 频率范围 Frequency Range | UHF 1 : 403 - 446 MHz UHF 2 : 435 - 480 MHz VHF : 136 - 174 MHz UHF 3 : 350 - 390 MHz | UHF : 403 - 480 MHz VHF : 136 - 174 MHz | UHF 1 : 403 - 470 MHz UHF 2 : 450 - 527 MHz VHF : 136 - 174 MHz UHF 3 : 330 - 400 MHz | UHF : 403-470MHz VHF : 136-174MHz | UHF 1 : 403-527MHz VHF 1 : 136-174MHz UHF 3 : 350-400MHz | UHF 1 : 403-527MHz VHF 1 : 136-174MHz UHF 3 : 350-400MHz | UHF : 400-480MHz VHF : 136-174MHz | UHF : 400-527MHz VHF : 136-174MHz | UHF : 400-527MHz VHF : 136-174MHz |
| 区域容量 Zone Capacity | |||||||||
| 信道容量 Channel Capacity | 99 | 160 | 16 | 16 | 16 | 256 | 64 | 1000 | 64 |
| 信道间隔 Channel Spacing | 12.5/25 kHz switchable | 12.5/25 kHz switchable | 12.5/20/25 kHz | 12.5 kHz / 20 kHz / 25 kHz2 | 12.5kHz | 12.5kHz | 12.5 / 20 / 25 kHz | 12.5 / 20 / 25 kHz | 12.5 / 20 / 25 kHz |
| 工作电压 Operating Voltage | 7.5V | 7.5V | 7.5V | 7.5V (nominal) | 7.5V (nominal) | 7.5V (nominal) | |||
| 电池 Battery | LiIon battery NiMH battery High Capacity LiIon battery | 1400mAh 1700mAh 2250mAh | 1450mAh; 1800mAh; | 1400mAh 1600mAh 2200mAh | 1600mAh 2450mAh 3000mAh | 1600mAh 2450mAh 3000mAh | 2300mAh 2100mAh (Slim) | 2200mAh (SLIM IMPRES) 2450mAh (Li-ION) | 2200mAh (SLIM IMPRES) 2450mAh (Li-ION) |
| 电池平均工作时间 （5/5/90工作循环，高功率发射） Battery Life | LiIon : 11 hrs NiMH : 9 hrs High Capacity LiIon : 16 hrs | 1400mAh : 9.5 hrs (Analog) 1400mAh : 12.3 hrs (Digital) 1700mAh : 10.7 hrs (Analog) 1700mAh : 14.4 hrs (Digital)) 2250mAh : 15 hrs (Analog) 2250mAh : 20 hrs (Digital) | 1450mAh : (L/P) : 11 hours / (H/P) : 9 hours 1800mAh : (L/P) : 14 hours / (H/P) : 11 hours | 1400mAh:9hrs(Analog) 1400mAh:13.5hrs(Digital) 1600mAh:10.5hrs(Analog) 1600mAh:13.5hrs(Digital)) 2200mAh:14.5hrs(Analog) 2200mAh:18.5hrs(Digital) | 1600mAh:14hrs(Analog) 1600mAh:18.5hrs(Digital) 2450mAh:16.5hrs(Analog) 2450mAh:21.5hrs(Digital)) 3000mAh:21hrs(Analog) 3000mAh:27.5hrs(Digital) | 1600mAh:11.5hrs(Analog) 1600mAh:15hrs(Digital) 2450mAh:14hrs(Analog) 2450mAh:18.5hrs(Digital)) 3000mAh:21hrs(Analog) 3000mAh:27.5hrs(Digital) | 2300mAh:19.5hrs(Analog) 2300mAh:26.5hrs(Digital) 2100mAh:17hrs(Analog) 2100mAh:22.5hrs(Digital) | UHF / VHF 2200mAh:14.5hrs/15hrs(Analog) 2200mAh:19hrs/20hrs(Digital) 2450mAh:16.5hrs/17hrs(Analog) 2450mAh:21.5hrs/22hrs(Digital) | UHF / VHF 2200mAh:14.5hrs/15hrs(Analog) 2200mAh:19hrs/20hrs(Digital) 2450mAh:16.5hrs/17hrs(Analog) 2450mAh:21.5hrs/22hrs(Digital) |
| 频率稳定度 Frequency Stability | ± 2.5 ppm | ± 1.5 ppm | ±0.00025% | ± 0.5 ppm | ±0.5ppm | ±0.5ppm | ±0.5ppm | ±0.5ppm | ±0.5ppm |
| 天线阻抗 Antenna Impedance | 50Ω | 50Ω | |||||||
| 外型尺寸（高x宽x厚） Dimensions(H×W×D)mm | 120 x 55 x 35.5 mm (LiIon) 120 x 55 x 36.5 mm (NiMH) 120 x 55 x 40.7 mm (High) | 120.0 x 55 x 37.5 mm (1400mAh) 120.0 x 55 x 36.5 mm (1700mAh) 120.0 x 55 x 41.7 mm (2250mAh) | 137 x 57.5 x 37.5 mm | 127.7 x 61.5 x 42 mm (1400mAh) 127.7 x 61.5 x 39 mm (1600mAh) 127.7 x 61.5 x 44 mm (2200mAh) | 122 x 56 x 36 mm (2050mAh) 122 x 56 x 36 mm (2450mAh) 122 x 56 x 42 mm (3000mAh) | 122 x 56 x 36 mm (2050mAh) 122 x 56 x 36 mm (2450mAh) 122 x 56 x 42 mm (3000mAh) | 125 x 55 x 37 mm (2300mAh) 125 x 55 x 32 mm (2100mAh) | 132 x 56 x 35 mm (2200mAh) 132 x 56 x 41 mm (2450mAh) | 132 x 56 x 31 mm (2200mAh) 132 x 56 x 37 mm (2450mAh) |
| 重量（含天线和标配电池） Weight(With antenna and battery) | LiIon battery (335.0g) NiMH battery (394.5g) High Capacity LiIon battery (342.0g) | 1400mAh (360g) 1700mAh (295g) 2250mAh (300g) | 420g | 1400mAh (406g) 1600mAh (341g) 2200mAh (346g) | 264g (1600mAh) 285g (2450mAh) 292g (3000mAh） | 281g (1600mAh) 287g (2450mAh) 309g (3000mAh） | 286g (2300mAh) 261g (2100mAh) | 316g (2200mAh) 346g (2450mAh) | 289g (2200mAh) 319g (2450mAh) |
| 显示屏 Display | YES | YES | NA | NA | NA | YES | NA | YES | NA |
| 键盘 Keypad | YES | YES | NA | NA | NA | YES | NA | YES | NA |
| 紧急报警按键 Dedicated Emergency Button | YES | NA | NA | NA | |||||
| 可编程按键 Programmable Buttons | 2 | 2 | 2 | 2 | 2 | ||||
| 旋钮个数 Number of Knobs | 1 | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
| 环境指标 Environment | |||||||||
| 工作温度范围 Operating Temperature | -30°C / +60°C | -30°C /+60C | -30°C / +60°C | -30°C / +60°C | -30°C / +60°C | -30°C / +60°C | -30 °C to 60 °C | -40 °C to 85 °C | -40 °C to 85 °C |
| 存储温度范围 Storage Temperature | -40°C / +85°C | -40°C /+85°C | -40°C / +85°C | -40°C / +85°C | -40°C / +85°C | -40°C / +85°C | -40°C / +85°C | -40 °C to 85 °C | -40 °C to 85 °C |
| ESD（静电防护等级） | IEC 61000-4-2 Level 3 | IEC 61000-4-2 Level 3 | IEC 61000-4-2 Level 3 | IEC 61000-4-2 Level 3 | IEC 61000-4-2（Level 4） | IEC 61000-4-2（Level 4） | IEC 61000-4-2（Level 4） | ||
| 防尘防水 Dust and Water Intrusion | IP54 | IP54 | IP54 | IP54 | IP67 | IP67 | IP55 | IP68 (submersion up to 2m, 2hrs) IP66 for high pressure-water resistance per IEC 60529 | IP68 (submersion up to 2m, 2hrs) IP66 for high pressure-water resistance per IEC 60529 |
| 湿度 Humidity | MIL-STD810C/D/E/F | Per MIL-STD | MIL STD 810C/D/E and TIA/EIA603 | Per MIL-STD | Rugged to MIL-STD 810 and E | Rugged to MIL-STD 810 and E | Per MIL-STD 810C, D, E, F, G, H | Per MIL-STD | Per MIL-STD |
| 冲击和振动 Shock and Vibration | MIL-STD810C/D/E/F | MIL STD 810C/D/E and TIA/EA603 | Per MIL-STD | Rugged to MIL-STD 810 and E | Rugged to MIL-STD 810 and E | MIL-STD 810D and E | MIL-STD 810D and E | ||
| 组网（可工作的系统） Networking | |||||||||
| 模拟常规 Analog Conventional Mode | YES | YES | YES | YES | YES | YES | YES | ||
| MPT-1327 MPT-1327 Trunking | NA | NA | NA | NA | NA | ||||
| 数字常规 Digital Conventional Mode | NA | YES | NA | YES | YES | YES | YES | ||
| IP互联 IP Site Connect | NA | NA | NA | License Management (Roaming) | License Management (Roaming) | ||||
| DMR同播系统 DMR Simulcast System | NA | NA | NA | NA | NA | ||||
| XPT集群系统 XPT Trunking | NA | NA | NA | License Management (multi-site) | License Management (multi-site) | ||||
| DMR集群系统 DMR Tier III Trunking | NA | NA | NA | NA | NA | YES | YES | ||
| 连接 Connecting | |||||||||
| 内置Wi-Fi Integrated Wi-Fi | NA | NA | NA | NA | NA | NA | YES | YES | |
| 内置GPS GPS | NA | NA | NA | NA | NA | NA | YES | YES | |
| 内置Glonass Integrated GLONASS | NA | NA | NA | NA | NA | NA | YES | YES | |
| 振动 Vibration | NA | NA | NA | NA | NA | NA | |||
| 蓝牙 Bluetooth | NA | NA | NA | NA | NA | NA | YES | YES | |
| 倒放 Man-down | NA | NA | NA | NA | NA | NA | |||
| RFID RFID Board | NA | NA | NA | NA | NA | NA | |||
| TF卡 TF Card | NA | NA | NA | NA | NA | NA | |||
| 可选版 Option Board | NA | NA | NA | NA | NA | NA | |||
| 定位/Positioning（定位精度规范适用于长期跟踪（95%值在额定＞-130dBm信号强度下5颗卫星可见）） | |||||||||
| 定位系统 Positioning System | NA | NA | NA | NA | NA | NA | |||
| 水平位置精度 Horizontal Position Accuracy | NA | NA | NA | NA | NA | NA | |||
| TTFF(首次定位时间）冷启动 Cold Start (Time to First Fix) | NA | NA | NA | NA | NA | NA | |||
| TTFF(首次定位时间）热启动 Hot Start (Time to First Fix) | NA | NA | NA | NA | NA | NA | |||
| 附件 Accessories | |||||||||
| 智能电池 Smart/IMPRES Battery | NA | NA | NA | NA | YES | YES | YES | YES | |
| 接收部分 Receiver | |||||||||
| 灵敏度（数字） Receiver Sensitivity (Digital) | NA | 0.25 uV / 0.19 uV (typical) | NA | 0.3 uV / 0.19 uV (typical)(5% BER) | 0.14μV/BER5% | 0.14μV/BER5% | 0.16 μV (typical) | 0.14 μV (typical) | 0.14 μV (typical) |
| 灵敏度（模拟） Receiver Sensitivity (Analog) | <-119 dBm (0.25uV) | 0.3 uV / 0.22 uV (typical) | 0.25 uV | 0.3 uV / 0.22 uV (typical)(12 dB SINAD) | 0.16μV (12dB SINAD) | 0.16μV (12dB SINAD) | 0.18 μV (typical) | 0.16 μV (typical) | 0.16 μV (typical) |
| 邻道选择性 Adjacent Channel Selectivity | > 70dB (25kHz), >65dB (12.5kHz) | 45 dB @ 12.5 kHz / 70 Db @ 25kHz | 60dB @ 12.5kHz/70dB @ 25kHz | TIA-603d : 45 dB @ 12.5 kHz / 70 dB @ 20/25 kHz2 | TIA-603 A-1T: [email protected] / 70dB@20/25kHz | TIA-603 A-1T: [email protected] / 70dB@20/25kHz | TIA-603 A-1T: [email protected] / 70dB@20/25kHz | 60 dB @ 12.5 kHz 70 dB @ 20 kHz / 25 kHz | 60 dB @ 12.5 kHz 70 dB @ 20 kHz / 25 kHz |
| 互调 Intermodulation | >70dB | 70dB | 70dB | TIA-603D: 70dB | TIA-603D: 70dB | TIA-603D: 70dB | TIA-603D: 70dB | TIA-603D: 70dB | TIA-603D: 70dB |
| 杂散响应抑制 Spurious Response Rejection | >70dB | 70dB | 70dB | TIA-603D: 70dB | TIA-603D: 70dB | TIA-603D: 70dB | TIA-603D: 70dB | TIA-603D: 70dB | TIA-603D: 70dB |
| 阻塞 Blocking | / | / | / | / | / | / | |||
| 交流声与噪声 Hum and Noise | >40dB | -40 dB @ 12.5 kHz / -45 dB @ 25 kHz | -45db @ 12.5kHz/-50dB @ 25kHz | -40 dB @ 12.5 kHz / -45 dB @ 20/25 kHz2 | -40 dB (12.5 kHz channel), -45 dB (25 kHz channel) | -40 dB (12.5 kHz channel), -45 dB (25 kHz channel) | -40 dB (12.5 kHz) -45 dB (20/25 kHz) | ||
| 额定音频输出功率 Rated Audio Power Output | 500mW (at 24 ohm) | 0.5W (Internal) | 500mW | 0.5W | 0.5W | 0.5W | |||
| 额定音频失真 Rated Audio Distortion | <5% | 5% (3% typical) | +1 to – 3dB (300-3000hz) | 5% (3% typical) | 3% | 3% | |||
| 音频响应 Audio Response | +1 to – 3dB (300-3000hz) | TIA603D | +1 to – 3dB (300-3000hz) | TIA603D | TIA603D | TIA603D | TIA603D | ||
| 传导/辐射杂散 Conducted Spurious Emission | < -57dBm for below 1GHz < -47dBm for above 1GHz | -57 dBm | -57dBm < 1GHz/-47dBm > 1GHz/FCC Part 15 | -57 dBm | -57 dBm | -57 dBm | -57 dBm | -57 dBm | -57 dBm |
| 发射部分 Transmitter | |||||||||
| 输出功率 RF Output Power | VHF: 5W / 1W , UHF: 4W / 1W | 4W / 1W | VHF: 5W, UHF:4W | VHF: 5W, UHF:4W | VHF: 5W, UHF:4W | VHF: 5W, UHF:4W | VHF: 5W, UHF:4W | VHF: 5W, UHF:4W | VHF: 5W, UHF:4W |
| FM调制方式 FM Modulation | / | / | / | / | / | / | |||
| 传导/辐射杂散 Conducted/Radiated Emission | -36 dBm < 1 GHz / -30 dBm > 1 GHz | -36 dBm < 1 GHz / -30 dBm > 1 GHz | -36 dBm < 1GHz, -30 dBm > 1GHz (TIA603D) | -36 dBm < 1GHz, -30 dBm > 1GHz (TIA603D) | < -36 dBm for < 1 GHz ; < -30 dBm for > 1 GHz | ||||
| 调制限制 Modulation Limiting | ≤ 5khz (25kHz) ≤ 2.5khz (12.5kHz) | ± 2.5 kHz @ 12.5 kHz / ± 5.0 kHz @ 25 kHz | ±2.5 @ 12.5kHz /±4.0 @ 20kHz/±5.0 @25kHz | ± 2.5 kHz @ 12.5 kHz / ± 4.0 kHz @ 20 kHz / ± 5.0 kHz @ 25 kHz2 | / | ± 2.5 kHz @ 12.5 kHz / ± 4.0 kHz @ 20 kHz / ± 5.0 kHz @ 25 kHz | |||
| FM交流与噪声 FM Hum&Noise | > 40dB | -40 dB @ 12.5 kHz / -45 dB @ 25 kHz | -40dB | -40 dB @ 12.5 kHz / -45 dB @ 20/25 kHz2 | / | -40 dB @ 12.5 kHz / -45 dB @ 20/25 kHz | -40 dB @ 12.5 kHz -45 dB @ 20 kHz / 25 kHz | -40 dB @ 12.5 kHz -45 dB @ 20 kHz / 25 kHz | |
| 邻道功率 Adjacent Channel Power | 60 dB @ 12.5 kHz / 70 dB @ 25 kHz | 60dB (12.5 kHz channel), 70dB (20/25 kHz channel) | 60dB (12.5 kHz channel), 70dB (25 kHz channel) | 60dB (12.5 kHz channel), 70dB (25 kHz channel) | > 60 dB @ 12.5 kHz / >70 dB @ 20/25 kHz | ||||
| 音频响应 Audio Response | ≤ +1/-3dB | TIA603D | +1 to –3dB | TIA603D | TIA603D | TIA603D | TIA603E | (TIA603E)+1, -3 Db | (TIA603E)+1, -3 Db |
| 音频失真 Audio Distortion | <5% | 3% (typical) | ＜3% | < 3% (typical) | 3% | 3% | 3% (typical) | ≤1.5% | ≤1.5% |
| 声码器 Digital Vocoder Type | NA | AMBE +2™ | NA | AMBE +2™ | AMBE+2™ | AMBE+2™ | AMBE+2 | AMBE+2 | AMBE+2 |
| 公共软件功能 Common Software Features | |||||||||
| 联系人个数 Contact Number | NA | NA | NA | NA | |||||
| 扫描 Scan | YES | YES | YES | YES | YES | YES | |||
| 混合信道扫描 Mixed Channel Scan | NA | NA | NA | NA | YES | YES | |||
| 扫描列表个数 Scan List Number | NA | NA | NA | NA | |||||
| 扫描列表成员数 Scan List Member Capacity | NA | NA | NA | NA | |||||
| 禁发 TOT | NA | NA | NA | NA | YES | YES | |||
| 智能音频配件 IMPRES audio | NA | NA | NA | NA | YES | YES | |||
| 噪音消除 Noise Cancelling | NA | NA | NA | NA | |||||
| 双麦克降噪 Dual-mic Noise Reduction | NA | NA | NA | NA | License Management | License Management | |||
| 音质音量优化器 LQO / Intelligent Audio | NA | NA | NA | NA | |||||
| 自动增益控制 AGC(Automatic Gain Control) | NA | NA | NA | NA | |||||
| 自定义情景模式 Customized Audio Profile | NA | NA | NA | NA | |||||
| 声控 VOX | YES | YES | YES | NA | YES | YES | |||
| 数字功能 Digital Features | |||||||||
| 对讲机管理系统 Radio Management | NA | NA | NA | NA | License Management | License Management | |||
| 空中编程 Over-the-air Programming (OTAP) | NA | NA | NA | NA | License Management | License Management | |||
| 空中升级 Over-the-air Software Upgrade | NA | NA | NA | NA | License Management | License Management | |||
| 无线电池管理 Over-the-Air Battery Management | NA | NA | NA | NA | License Management | License Management | |||
| TDMA Direct Mode TDMA | NA | NA | NA | NA | YES | YES | |||
| 基础加密 E2E Basic Encryption | NA | NA | NA | NA | YES | YES | |||
| 高级加密 E2E Advanced Encryption | NA | NA | NA | NA | License Management | License Management | |||
| 单独工作 Lone Worker | NA | NA | NA | NA | YES | YES | |||
| 紧急报警 Emergency | NA | NA | NA | NA | YES | YES | |||
